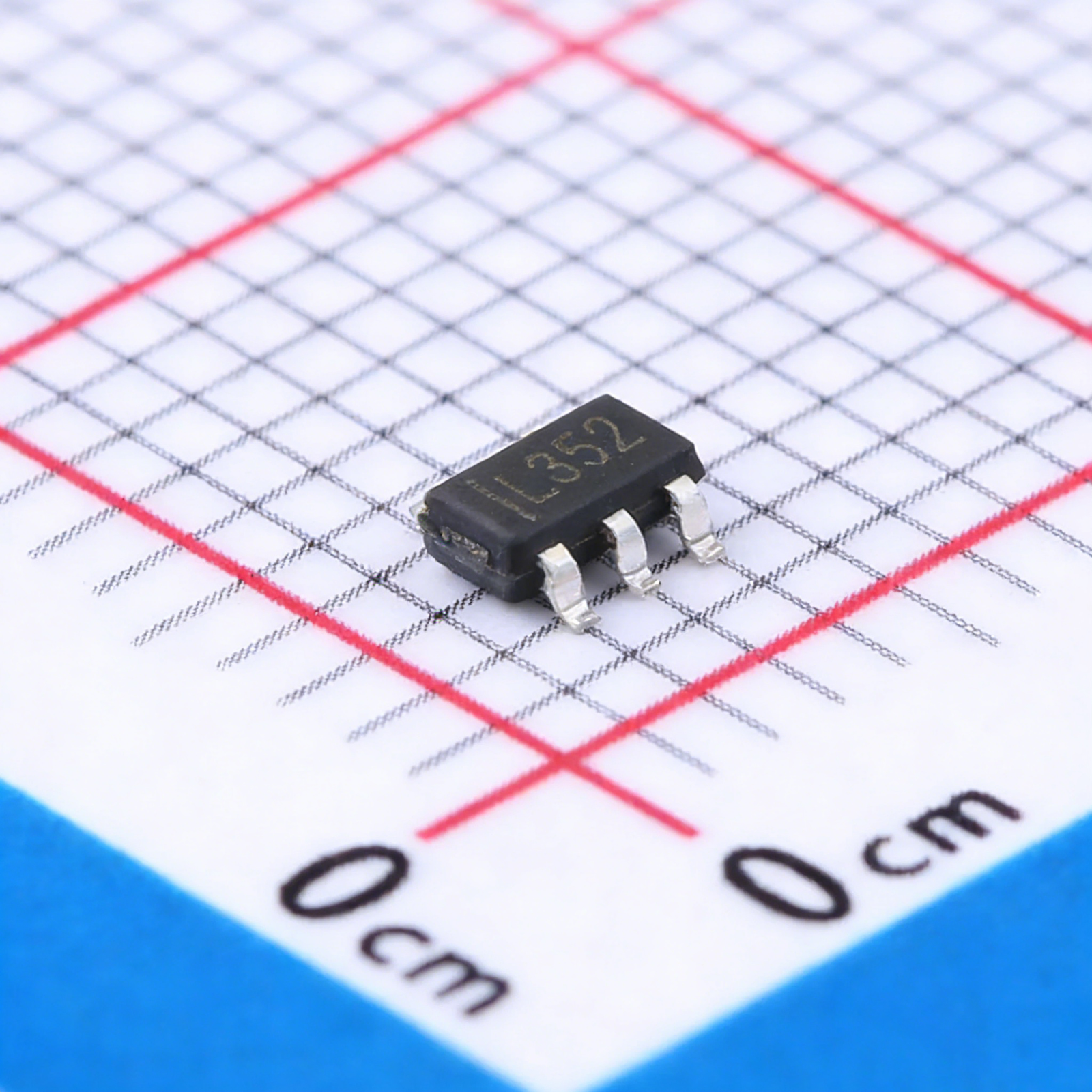

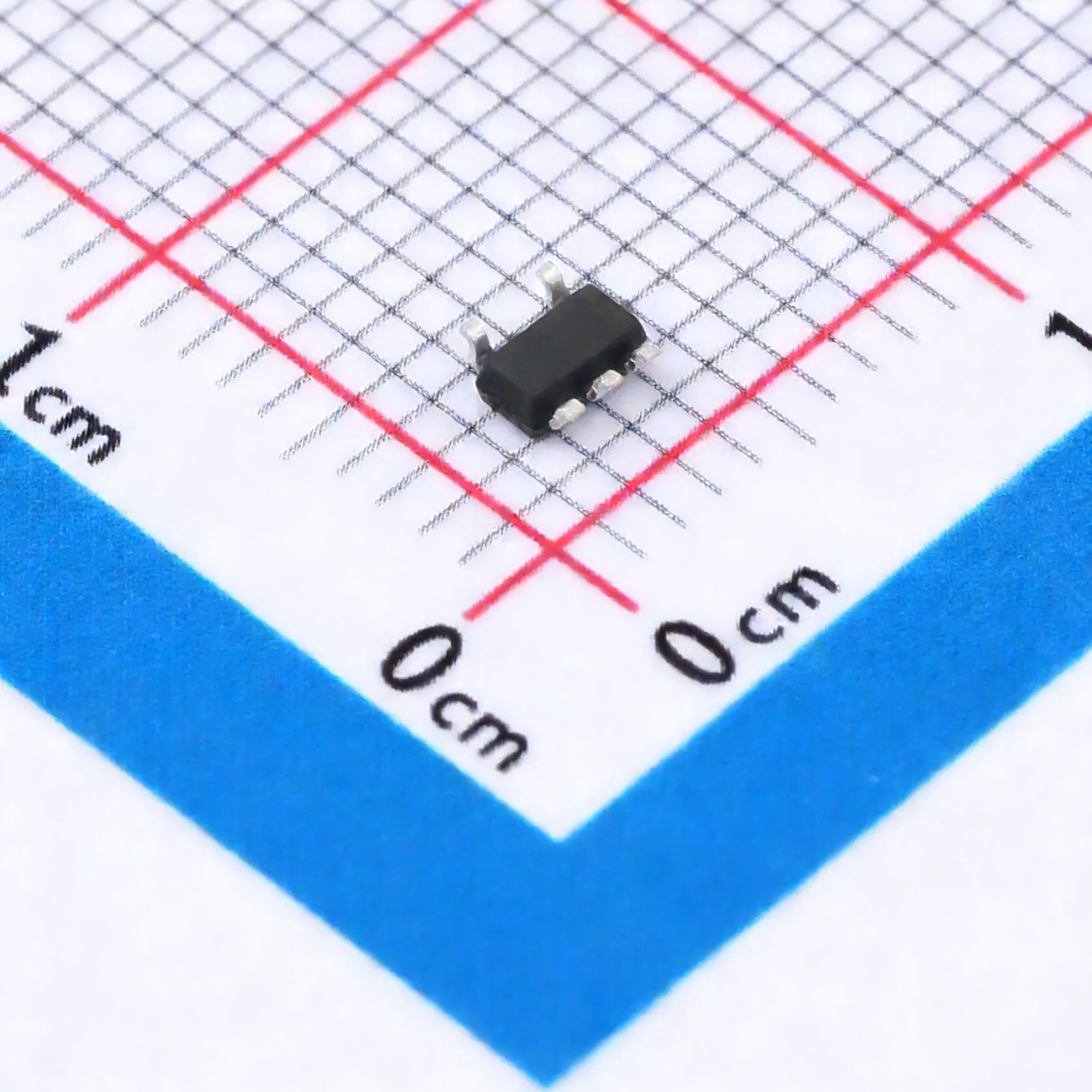

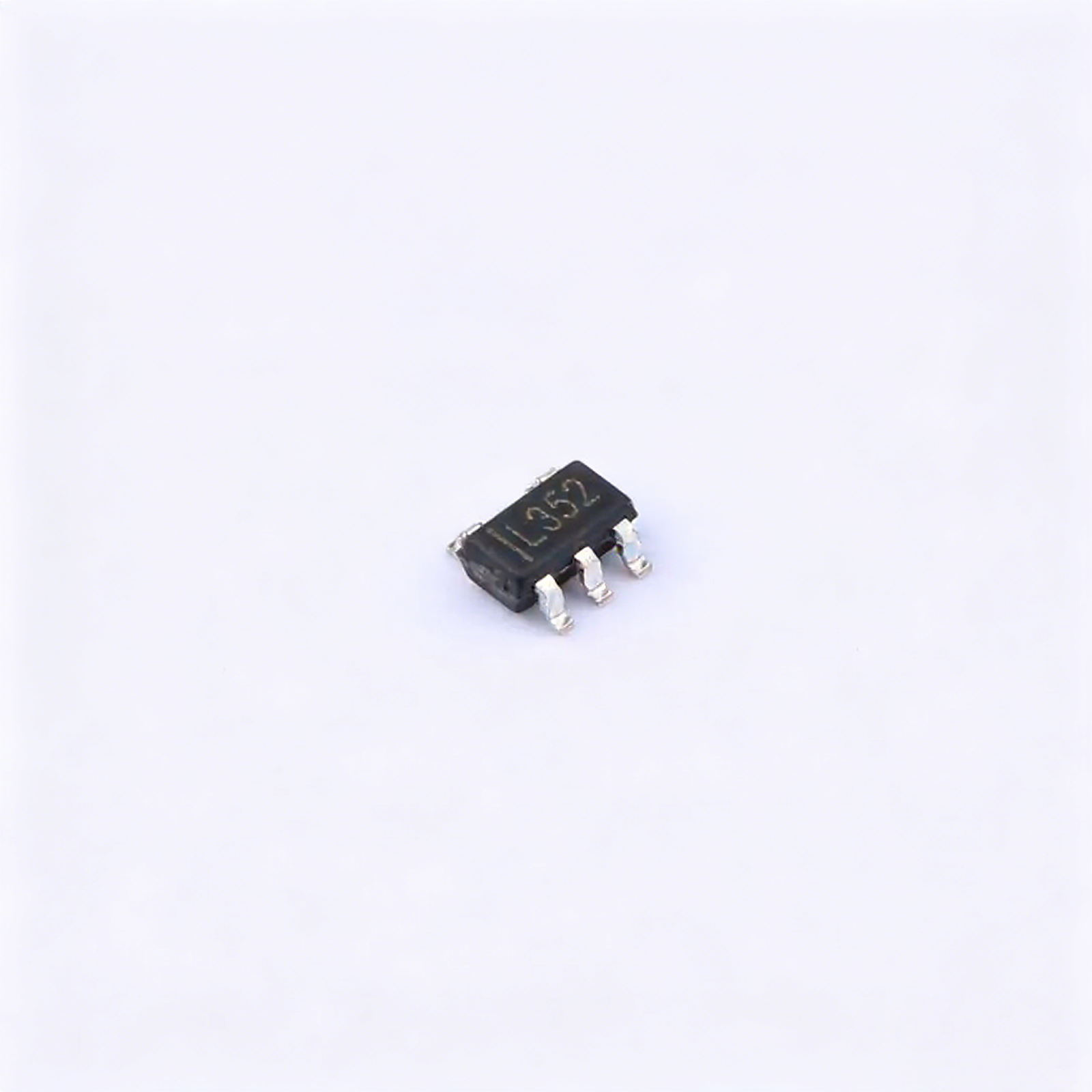

TPSPX3819M5-L-3-3 Power Chips

$0.20

+ Shipping extra
TPSPX3819M5-L-3-3 is a high-performance, ultra-low quiescent current LDO linear voltage regulator from TECH PUBLIC, delivering a fixed 3.3V output with up to 500mA load current. It features an enable pin, extremely low ground current of only 5.0 μA (no-load) and zero shutdown current, making it ideal for battery-powered devices to maximize battery life. With a wide input voltage range of 2V to 18V (up to 20V absolute max), low dropout voltage (~350–420 mV at 100mA, depending on output variant reference), ±2% output accuracy, high PSRR (70 dB @ 1kHz), current limit, thermal shutdown protection, and stability with ceramic or tantalum output capacitors, it comes in a compact SOT-23-5 package.

Product Short Description :

The TPSPX3819M5-L-3-3 from TECH PUBLIC is an ultra-low-power 3.3V 500mA LDO voltage regulator perfect for battery-operated and portable electronics. Boasting an impressively low 5.0 μA quiescent current (no-load) and zero disable current, it significantly extends battery runtime in low-power applications. Wide input range (2V–18V), low dropout (~0.35V at 100mA for similar outputs), enable control, over-current & thermal protection, and ±2% accuracy ensure reliable performance. Stable with ceramic capacitors, high PSRR (70dB@1kHz), and tiny SOT-23-5 package make it suitable for space-constrained designs. Ideal for IoT devices, wireless modules, wearables, handheld gadgets, low-power MCUs, sensors, industrial instruments, and home automation. High value, RoHS compliant – stock available now!

SKU: 60000 Category:
