TLV62130RGTR POWER CHIPS

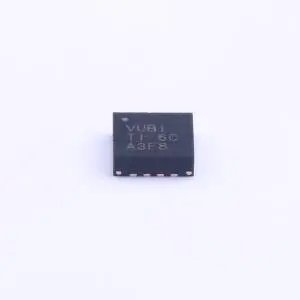

The **Texas Instruments TLV62130RGTR** is a high-efficiency, synchronous step-down (buck) DC-DC converter optimized for high power density in a tiny 3 mm × 3 mm VQFN-16 (RGT) package. It delivers up to 3 A continuous output current with excellent transient response and high output voltage accuracy thanks to TI’s proprietary DCS-Control™ topology.

**Key Specifications:**
– Brand: Texas Instruments (TI)
– Part Number: TLV62130RGTR
– Topology: Synchronous buck (step-down)
– Input Voltage Range: 3 V to 17 V
– Output Voltage Range: 0.9 V to 5.5 V (adjustable; pin-selectable nominal values ±5%)
– Output Current: up to 3 A continuous
– Switching Frequency: Fixed 2.5 MHz (typ.; allows small inductors)
– Quiescent Current (Iq): 19 µA (typ. in power-save mode)
– Shutdown Current: < 2 µA
– Efficiency: High across load range with seamless power-save mode transition
– Control Features: DCS-Control™ topology, programmable soft-start / tracking, 100% duty cycle mode, power-good output
– Protection Features: Short-circuit, over-temperature, current limit

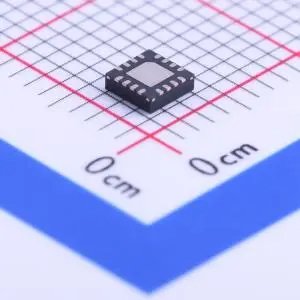

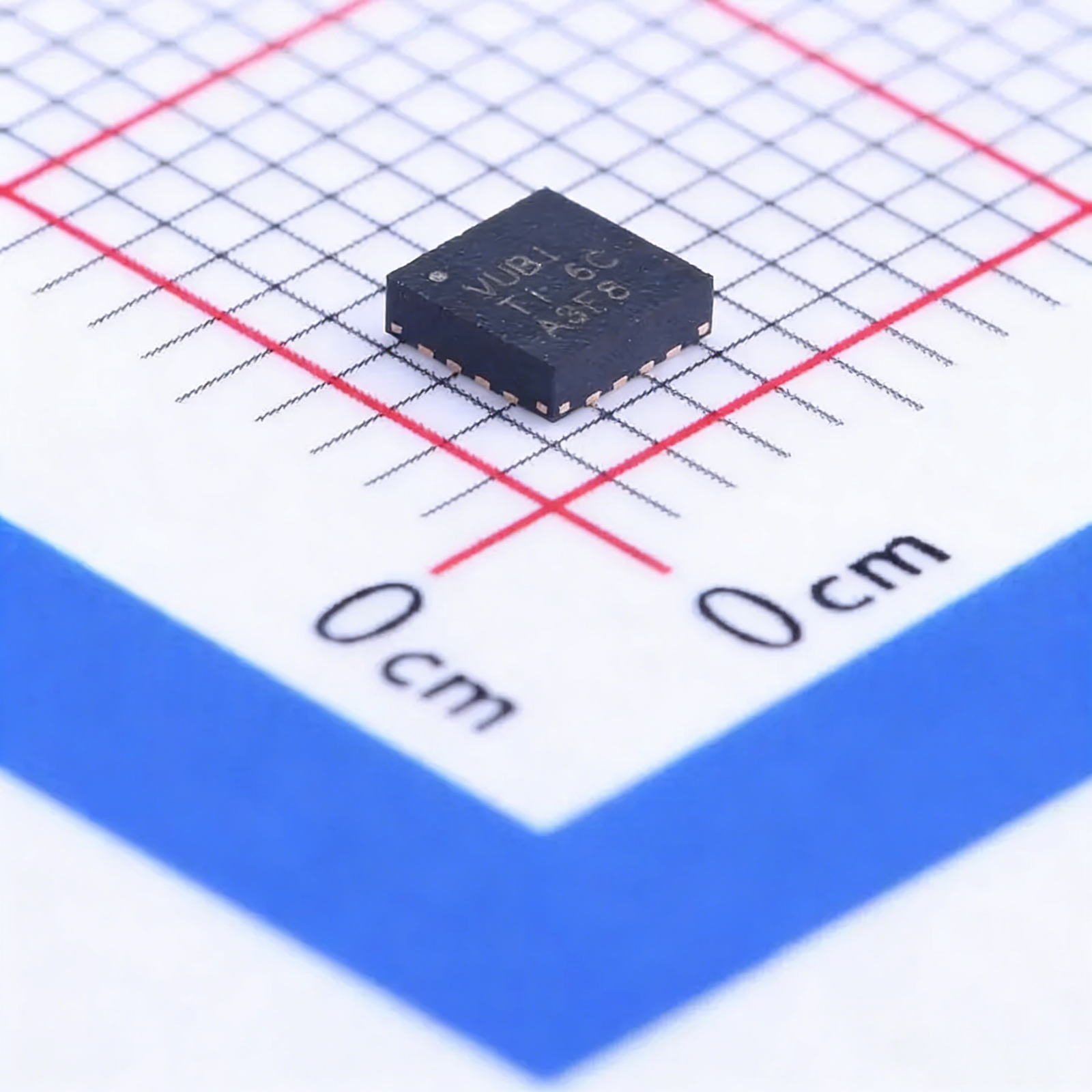

– Package: 3 × 3 mm QFN-16 with exposed pad (RGT)
– Packaging: Tape & Reel
– Operating Temperature Range: –40 °C to +85 °C (TA)

**Typical Applications:**
– 12 V intermediate bus / standard rail POL conversion
– Single- or multi-cell Li-ion battery-powered point-of-load supplies
– Portable & mobile devices: laptops, tablets, modems, cameras
– TVs, set-top boxes, audio systems
– Motor drivers, electronic point-of-sale terminals
– Space-constrained industrial and consumer designs requiring high efficiency and tiny footprint

The TLV62130RGTR combines ultra-low Iq, fast transient performance, wide VIN range, seamless light-load efficiency, and pin-compatibility with TPS62130 / TLV62150 family — making it an ideal, compact, and high-performance 3 A synchronous buck solution for battery-powered, 12 V rail, and high-density applications.
