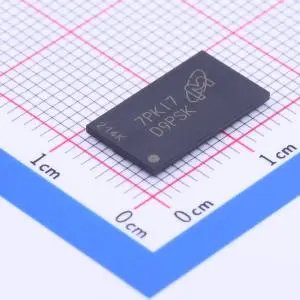

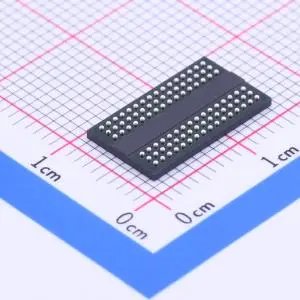

MT41K128M16JT-125:k Memory Chips

The **Micron MT41K128M16JT-125:K** is a high-performance 2 Gbit (256 MB) DDR3L SDRAM memory device from Micron Technology, organized as 128M words × 16 bits. This low-voltage (1.35 V nominal) DDR3L chip operates at up to 1600 Mbps (PC3L-12800 / DDR3L-1600 speed grade, tCK = 1.25 ns) and is housed in a space-efficient 96-ball FBGA package.

**Key Specifications:**
– Brand: Micron
– Part Number: MT41K128M16JT-125:K
– Capacity: 2 Gbit (128M × 16)
– Type: DDR3L SDRAM (1.35 V low-voltage, backward compatible with 1.5 V DDR3)
– Data Rate: 1600 Mbps
– Clock Frequency: 800 MHz
– Supply Voltage: 1.283 V to 1.45 V (1.35 V nominal)
– Organization: 128M × 16
– Active current: 46 mA (typ.)
– Refresh current: 12 mA (typ.)
– Package: 96-ball FBGA (8 × 14 mm)
– Packaging: Tape & Reel
– Operating Temperature Range: 0 °C to +95 °C (Commercial / Extended Commercial, Tc)

This DDR3L device combines excellent power efficiency, high bandwidth, and proven reliability, making it well suited for embedded systems, industrial automation, networking equipment, set-top boxes, routers, IoT gateways, consumer electronics, and other applications requiring moderate-density, low-power DDR3 memory with standard commercial temperature operation.

A cost-effective and widely compatible memory solution ideal for designs seeking long-term availability, compact footprint, and smooth transition from standard DDR3 to lower-voltage DDR3L platforms.
