FJBD4N8GT6L9-SKC Memory Chips

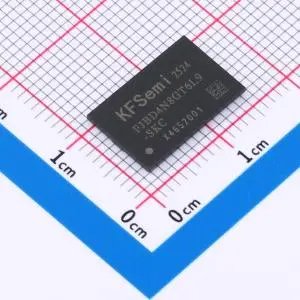

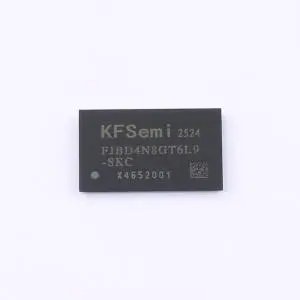

The KFSemi FJBD4N8GT6L9-SKC is a high-performance 8 Gbit (1 GB) DDR4 SDRAM memory chip organized as 512M × 16, operating at speeds up to 2666 Mbps (PC4-2133). Packaged in a compact 96-ball FBGA (96BGA), this single-die device is optimized for single-board, single-chip applications requiring reliable, cost-effective DDR4 performance.

Key Specifications:

• Brand: KFSemi
• Part Number: FJBD4N8GT6L9-SKC
• Capacity: 8 Gbit (512M words × 16 bits)
• Type: DDR4 SDRAM
• Data Rate: 2666 Mbps (tCK = 0.75 ns)
• Clock Frequency: 1.333 GHz
• Supply Voltage: 1.14 V to 1.26 V (1.2 V nominal)

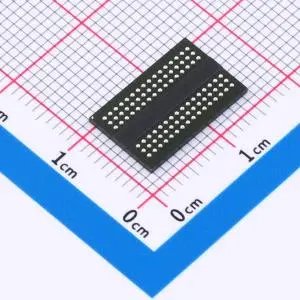

• Package: 96-ball FBGA (96BGA)
• Packaging: Tray
• Operating Temperature: 0 °C to +95 °C (Tcase)
• Weight: 0.25 g

Designed for embedded systems, industrial control, networking equipment, consumer electronics, and other applications demanding stable DDR4 memory with low power consumption and good thermal characteristics. Ideal for designs using a single memory chip per board.

Note: This device is specified for single-chip, single-board usage.
